1kw 2kw 5kw 10kwwind charge controller with dump load
-
Product Description
Applications
Independent wind power plant
Independent household wind power generation system
Power supply for those unmanned regions like mobile communication station, high way, the coastal islands, remote mountainous regions and border posts.
Regional research projects, government demonstration projects, landscape lighting projects for those places with insufficient power or power shortages.
Features

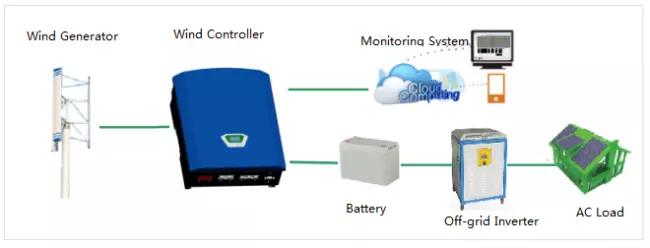

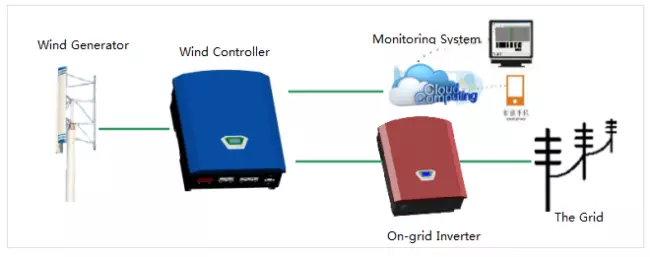

Can be applied to grid-tied system, off-grid system and grid-tied energy storage system.
Several functions are optional, such as PV control function, wind speed measure function, rotational speed control function and temperature compensation function.
RS232/RS485/RJ45/GPRS/Bluetooth/Zigbee optional. ( It can be monitored by app for those with GPRS/Bluetooth/RJ45 connection)
MPPT power curve settable
Complete protection function
Standard MODBUS protocol optional
Specification
1kw Model WW10-48-48 Type Boost Wind Turbine Input Rated input power 1kW Rated input voltage 56Vdc Input voltage range 0~64Vdc Start charge voltage 12Vdc (factory default, 8Vdc~64Vdc settable) Rated input current 21Adc Output Parameters Rated output voltage 48Vdc Start unload voltage 56Vdc (factory default, 44Vdc~64Vdc settable) Complete unload voltage 60Vdc (factory default, add 4V to the start unload voltage) Max. Output current 21Adc General Parameters Display mode LCD Display information DC output voltage, wind turbine voltage/current/power.
For those with charge control function, Battery voltage is showed as well.Monitoring Contents Real-time display: DC output voltage, wind turbine voltage/current/power.
For those with charge control function, Battery voltage is showed as well.
Parameter setting: Output overvoltage point, wind turbine over current point, wind turbine start voltage, and wind turbine brake
settingsLightning protection YES Product dimension (W*H*D) 300×375×145mm Product net weight 10kg 2kw Model WW20-48-48 Type Boost Rated input power 2kW Rated input voltage 56Vdc Input voltage range 0~64Vdc Start charge voltage 12Vdc (factory default,8Vdc~64Vdc settable) Rated input current 42Adc Start unload voltage 56Vdc (factory default,44Vdc~64Vdc settable) Complete unload voltage 60Vdc (factory default, add 4V to the start unload voltage) Max. Output current 42Adc General Parameters Rectifier mode Uncontrolled rectifier Display mode LCD Display information DC output voltage, wind turbine voltage/current/power.

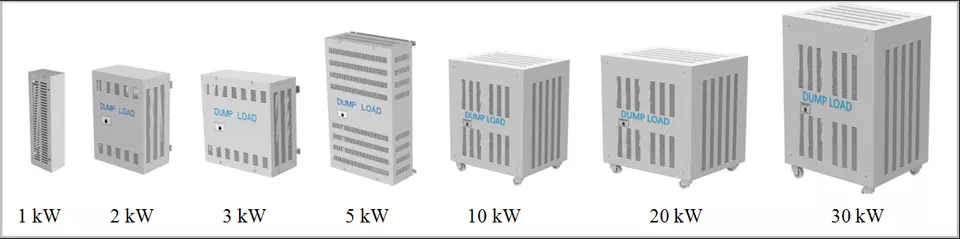

For those with charge control function, Battery voltage is showed as well.Cooling mode Natural cooling Product dimension (W*H*D) 300×375×145mm Product net weight 10kg Dump load dimension (W*H*D) 300*400*210 mm Dump load net weight 9kg 5-10kW Model WW50-48-240 WW50-240-240 WW100-240-240 Type Buck Boost Wind Turbine Input Rated input power 5kW 10kW Rated input voltage 280Vdc Input voltage range 0~320Vdc Start charge voltage 60Vdc (factory default,40Vdc~320Vdc settable) Rated input current 21Adc 42Adc Output Parameters Rated output voltage 48Vdc 240Vdc Start unload voltage 56Vdc (factory default,44Vdc~64Vdc settable) 280Vdc (factory default,220Vdc~320Vdc settable) Complete unload voltage 60Vdc (factory default, add 4V to the start unload voltage) 300Vdc (factory default,add 20V to the start unload voltage) Max. Output current 105Adc 21Adc 42Adc General Parameters Rectifier mode Uncontrolled rectifier Display mode LCD Display information DC output voltage, wind turbine voltage/current/power. For those with charge control function, Battery voltage is showed as well. Lightning protection YES Conversion efficiency ≥95% Product dimension (W*H*D) 360×440×195mm Product net weight 15.5kg Dump load dimension (W*H*D) 730×390×190mm 520×550×430mm Dump load net weight 19kg 45kg
