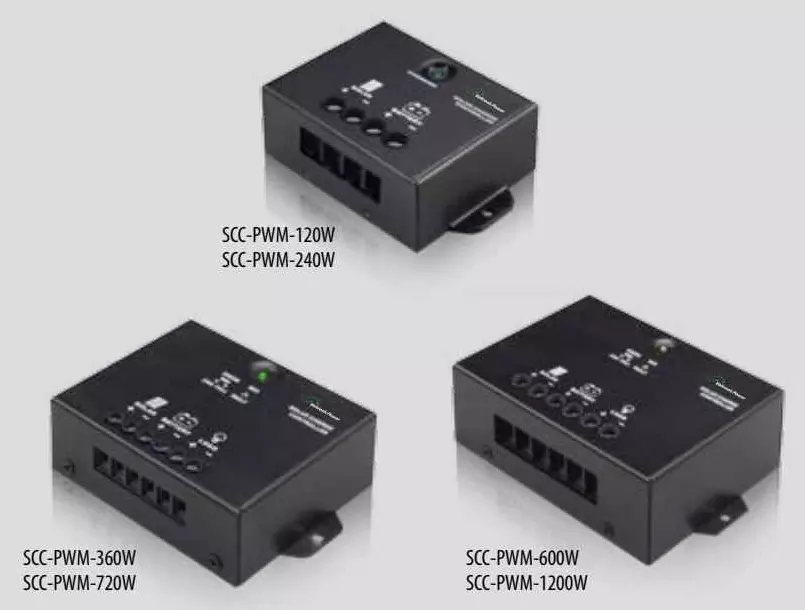

SCC series intelligent PWM 24v 30a solar charge controller
-
PWM Solar Charge Controller
Production
Operation: After all wires are connected, turn on the DC breaker or install the DC fuse. Then the solar charge controller will automatically work. At this time, the green LED will light up. Be sure solar panel is at least 6VDC higher than battery voltage to start charging.
1.Terminal block for solar panel connection
2.Terminal block for battery connection
3. Charging status indicator
4. Terminal block for load connection (only available
for 360W-1200W models)Specification
Model
120W
240W
360W
720W
600W
1200W
INPUT
Maximum PV Array Open Circuit Voltage
25 V
50 V
75 V
Maximum PV Array Power
120 W
240W
360W
720W
600W
1200W
OUTPUT
Nominal Battery Voltage
12V
24V
12V
24V
12V
24V
Maximum Charging Current
10A
30A
50A
Connected Battery Type
Sealed lead acid
PHYSICAL
Dimension (DxWxH mm)
92.6 x 60.7 x 30.8
107.6 x 75 x 30.8
131 x 85 x 40.5
Net Weight
210g
340g
490g
ENVIRONMENT
Humidity
0-90 % RH (non-condensing)
Operating Temperature
-20°C - 55°C
Storage Temperature
-40°C - 75°C
