PV Combiner Box
-
Product Profile
INTRODUCTION
PV combiner box can help user greatly reduce the wire of the PV modules and inverter.
According to inverter input dc voltage range, user can make numbers of the same specification PV modules in series to a string PV array, then connect photovoltaic array into PV combiner box, output through the lightning protection device and the circuit breaker, it's convenient that later inverter access.
Users are suggested to comply with necessary safety regulations in the installation and use, in order to guarantee the personal safety and reduce risk, users need to abide the safety measures mentioned in the manual.FRATURES
(1) Meet the requirements of the installation outdoor and indoor.
(2) This box can access 1/2/3/4/5/6/7/8/9/10/12/13/14/15/16/18/20 strings solar cells in serial, every string current can be up to 15A.
(3) Equipped with high pressure lightning protection device, both anode and cathode have the function of lightning protection.
(4) Equipped with fuse and circuit breaker two levels of safety protection devices.
(5) Simple, convenient installation and maintenance , with long service life.Product Description
PV ARRAY COMBINER BOX
1/2/3/4/5/6/7/8/9/10Input

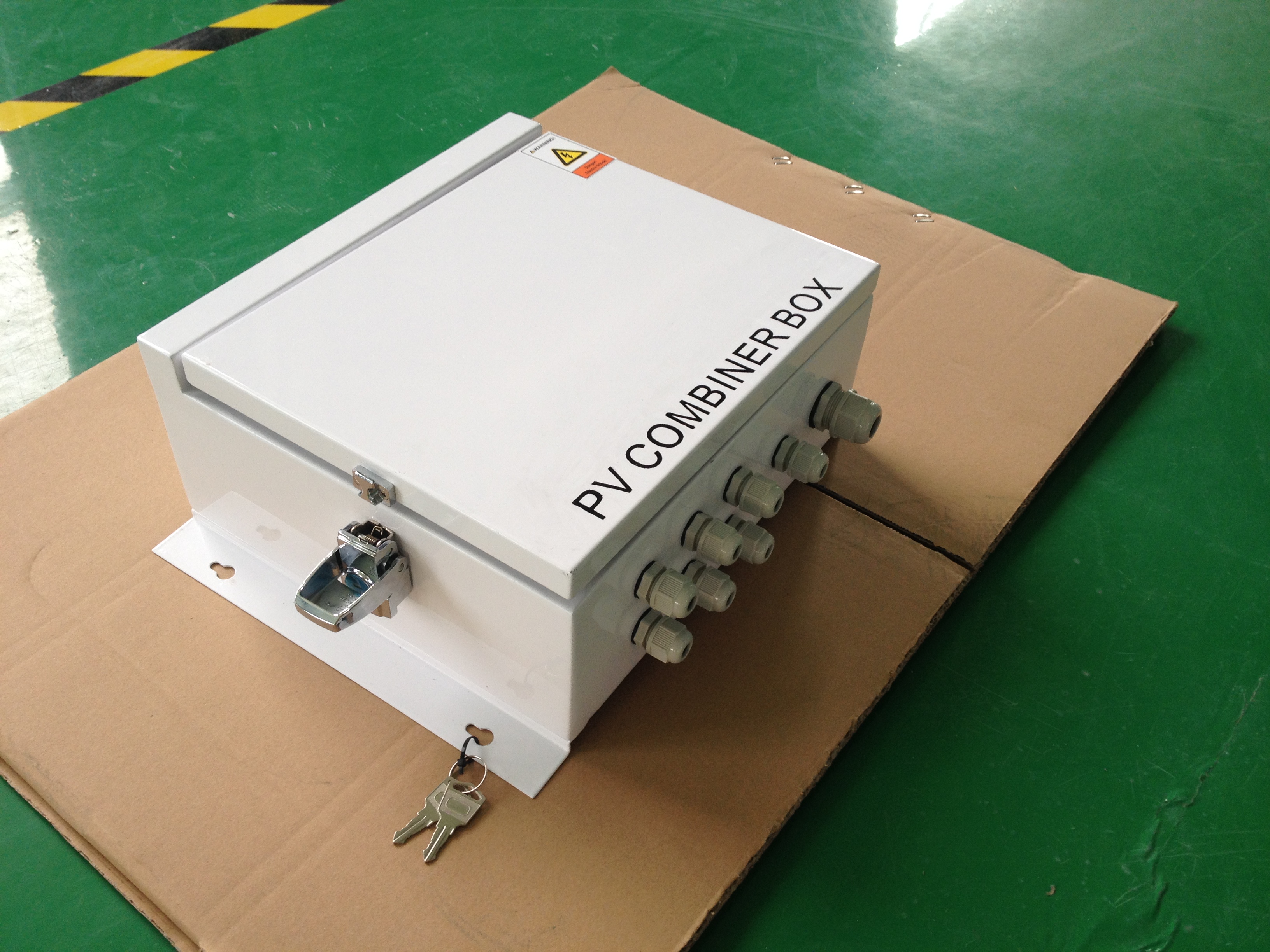

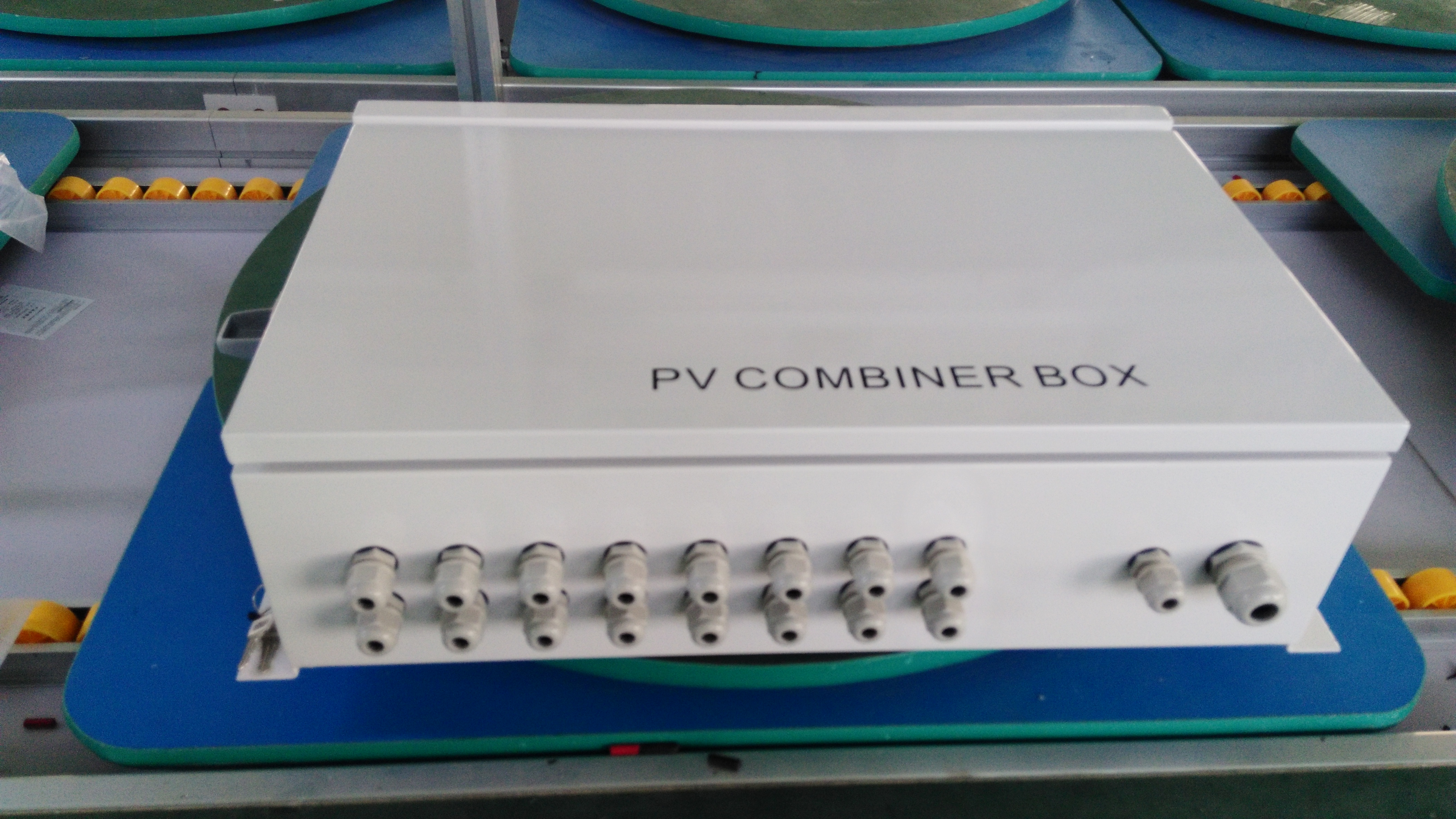

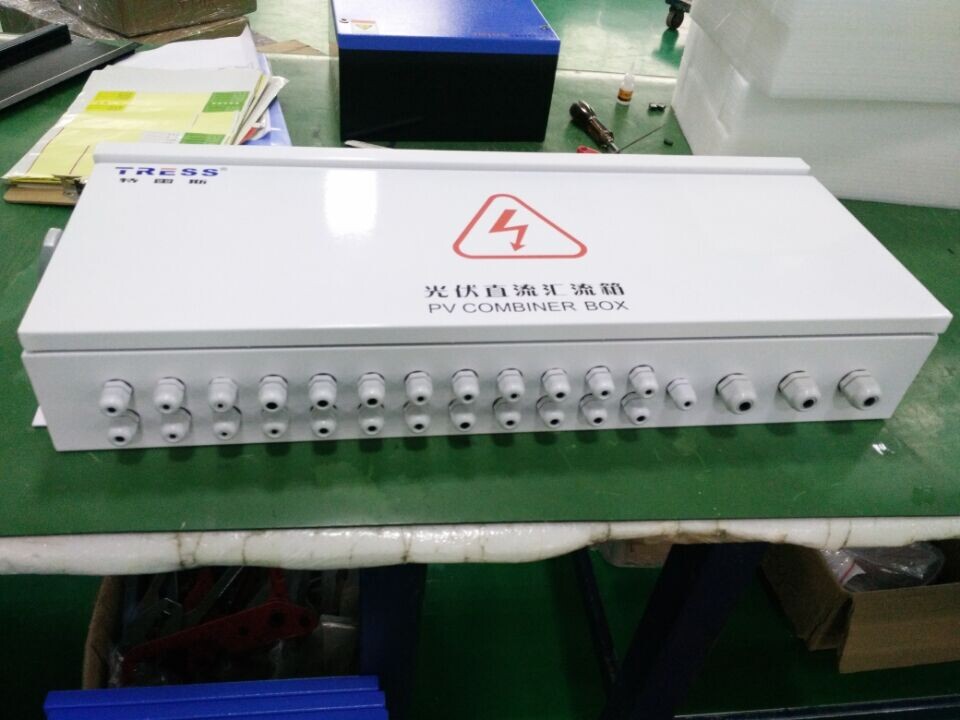

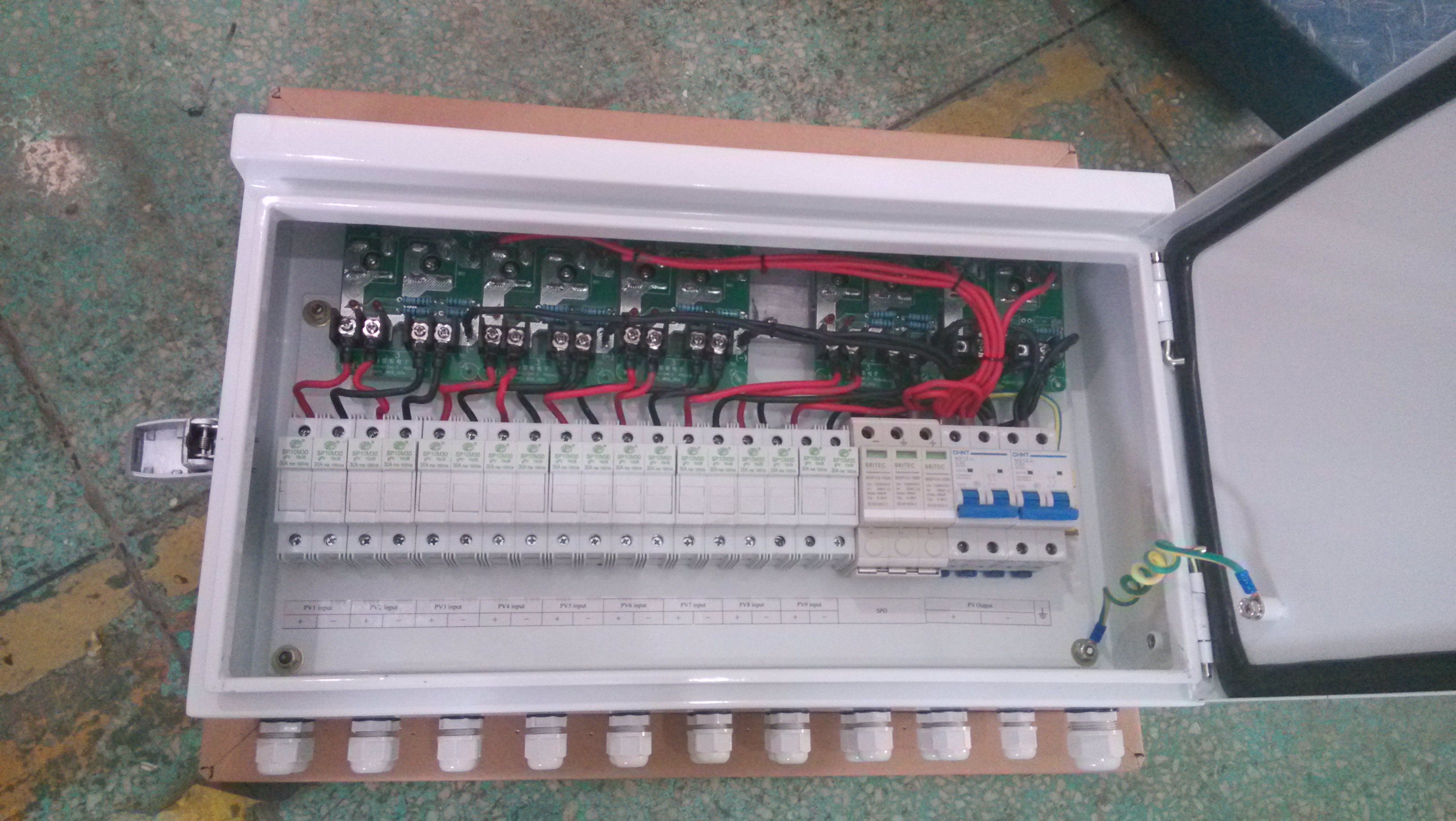

Detailed Image
Parameter
Input
2 input 1 output
2 input 2 output

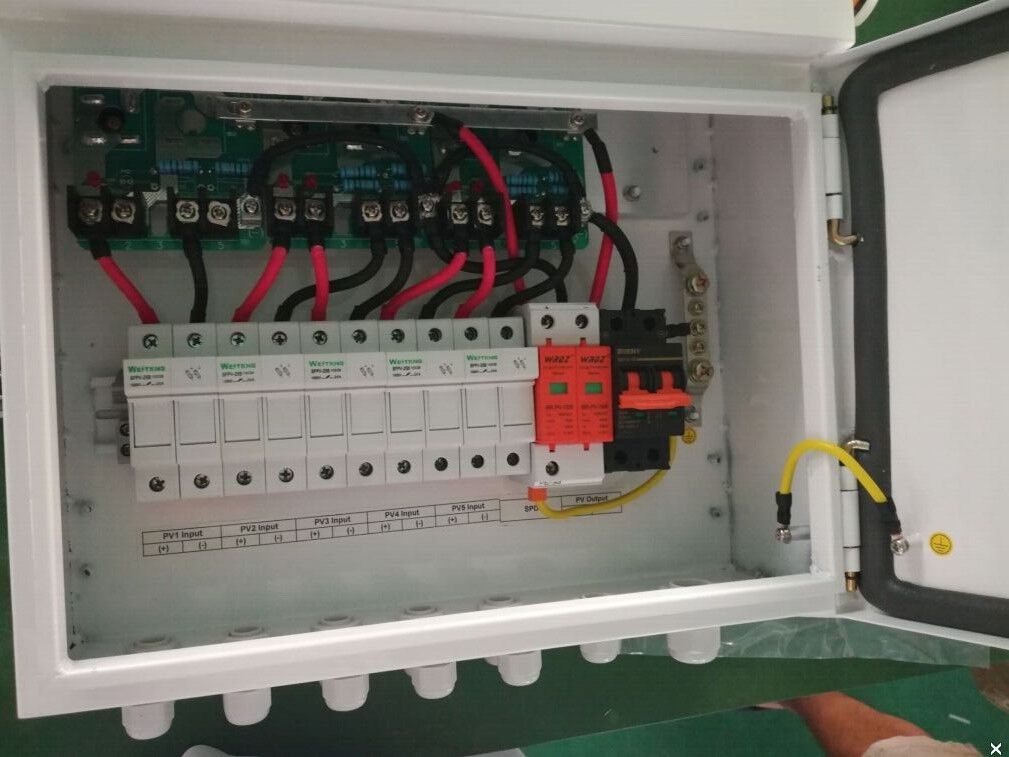

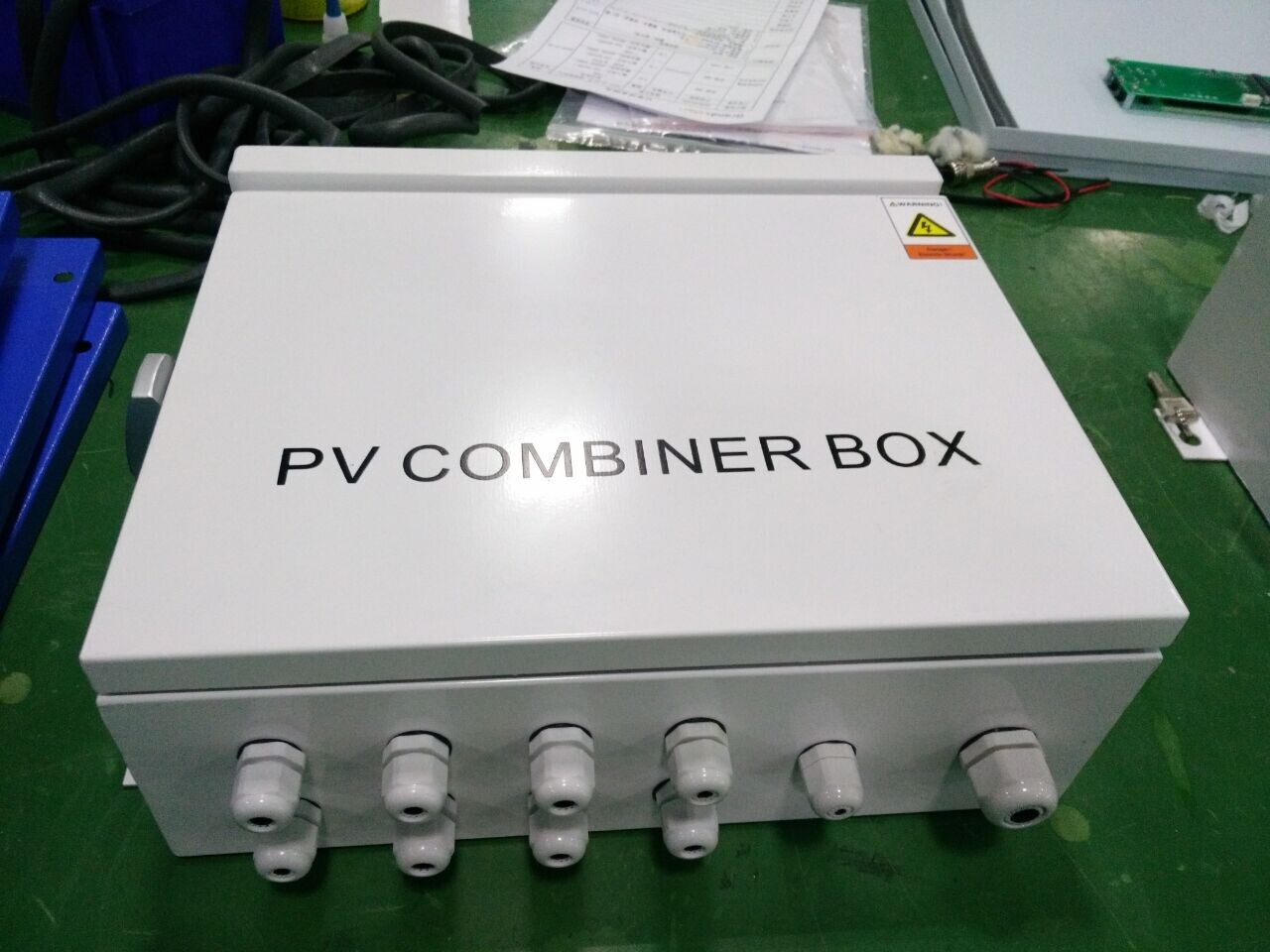

4 Input 1 Output
4 Input 2 Output
4 Input 4 Output
MAX. Input Voltage
DC1000V
Branch Current
10A
10A
10A
10A
15A
DIODE
25A 1000VDC
SPD
UC1000V IMAX40KA IN20KA UP≤2.5KV
FUSE
10A
10A
10A
10A
15A
MCB
25A
63A*2
50A
63A*2
63A*4
Connector
Waterproof connector
Protection degree
IP65
Operation Temperature Range
-25~+75(℃)
Relative Humidity
0~99%
Altitude
≤5500(m)
Weight
5.3KG
5.3KG
5.8KG
5.8kg
6.5kg
Dimension(mm)
270*320*135
270*320*135
275*350*140
275*350*140
320*305*140
Input
5 Input 1 Output
6 Input 1 Output
8 Input 1 Output
8 Input 4 Output
10 Input 1 Output
MAX. Input Voltage
DC1000V
Branch Current
15A
10A
10A
15A
10A
DIODE
25A DC1000V
SPD
UC1000V IMAX40KA IN20KA UP≤2.5KV
FUSE
15A
10A
10A
15A
10A
MCB
50A
63A
100A
63A*4
120A
Connector
Waterproof
Protection degree
IP65
Operation Temperature Range
-25~+75(℃)
Relative Humidity
0~99%
Altitude
≤5500(m)
Weight
10KG
10KG
15.5KG
18.5KG
16KG
Dimension(mm)
460*305*140
460*305*140
520*300*175
520*300*175
600*400*160
1/2/3/4/5/6/7/8/9/10/12/14/16/18/20 Input
