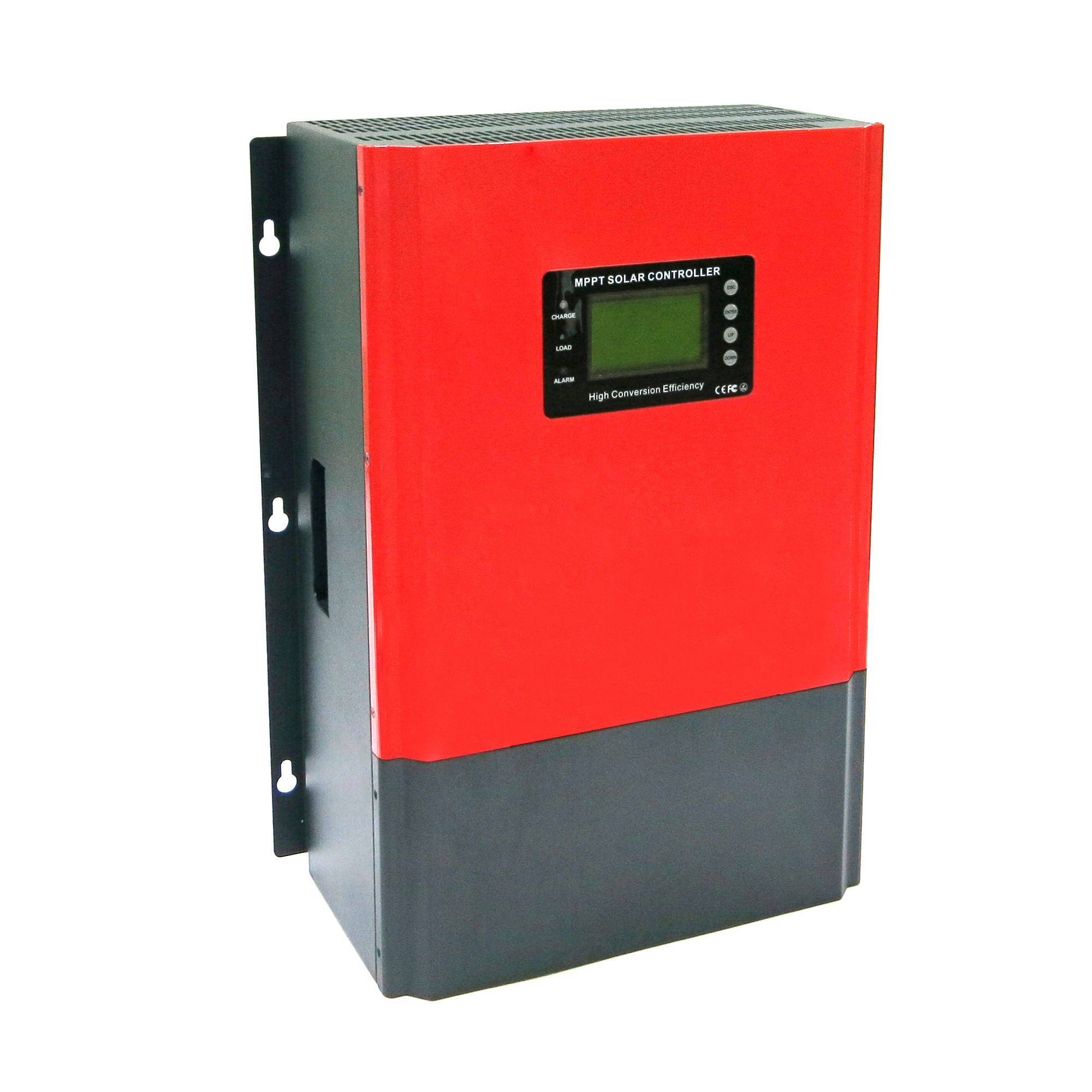

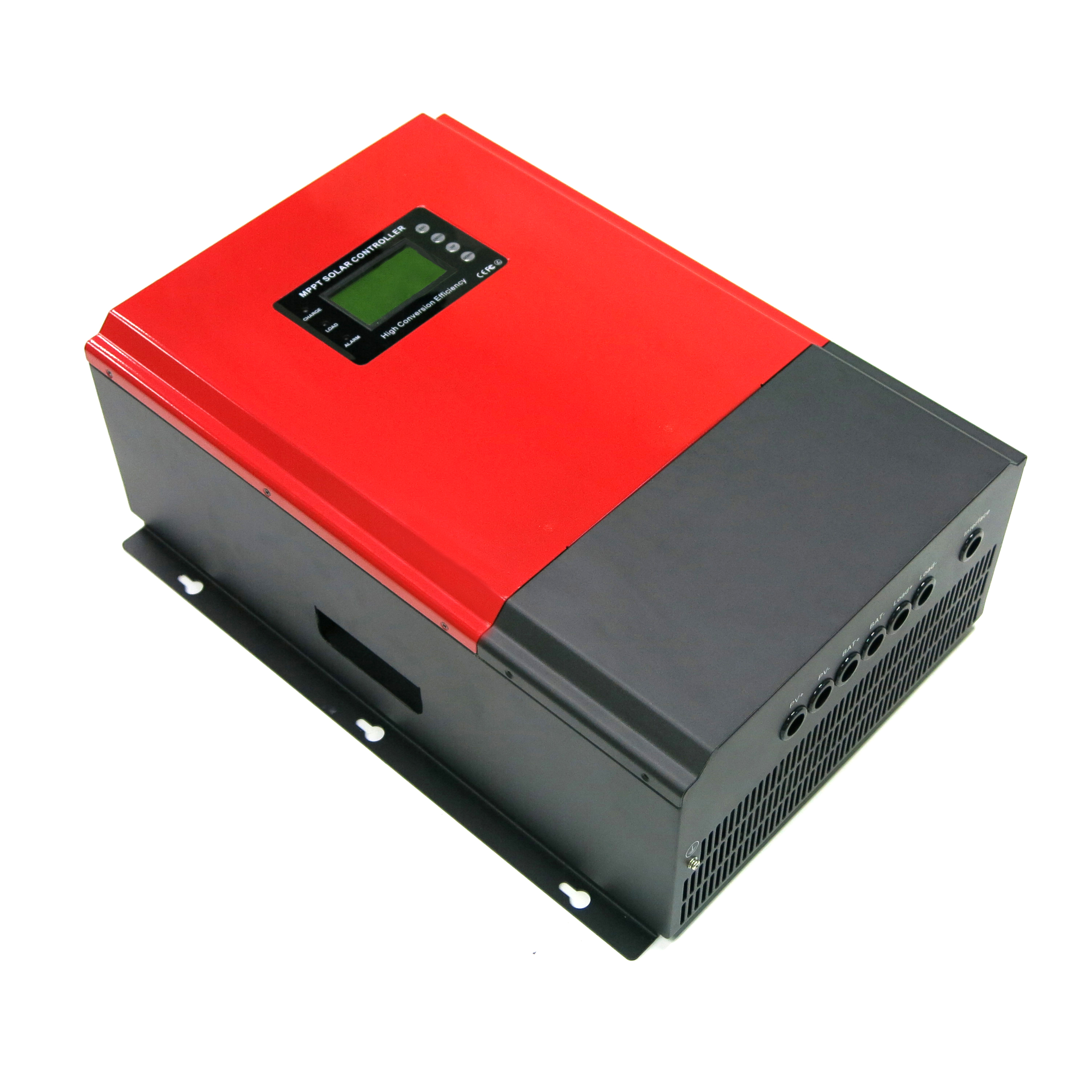

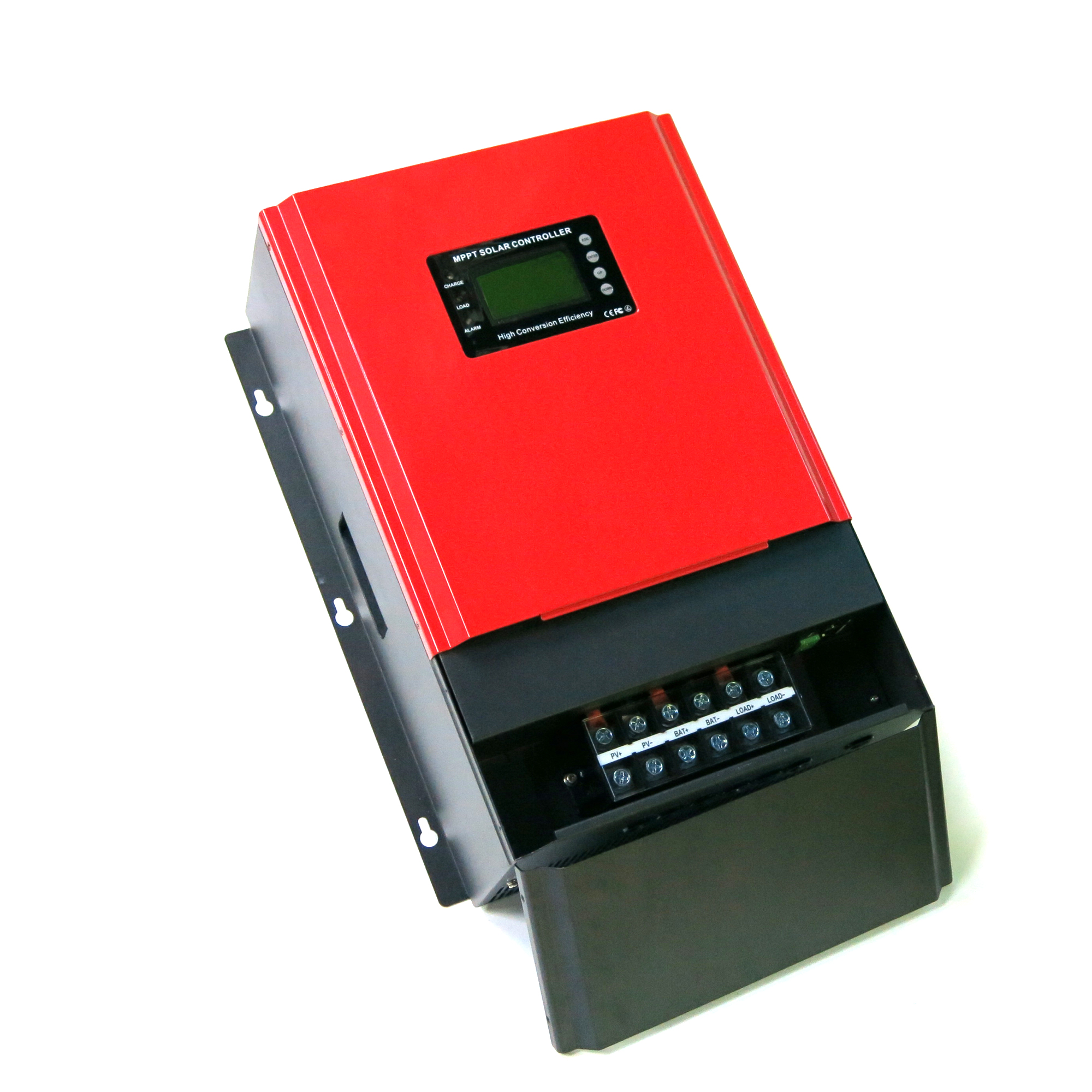

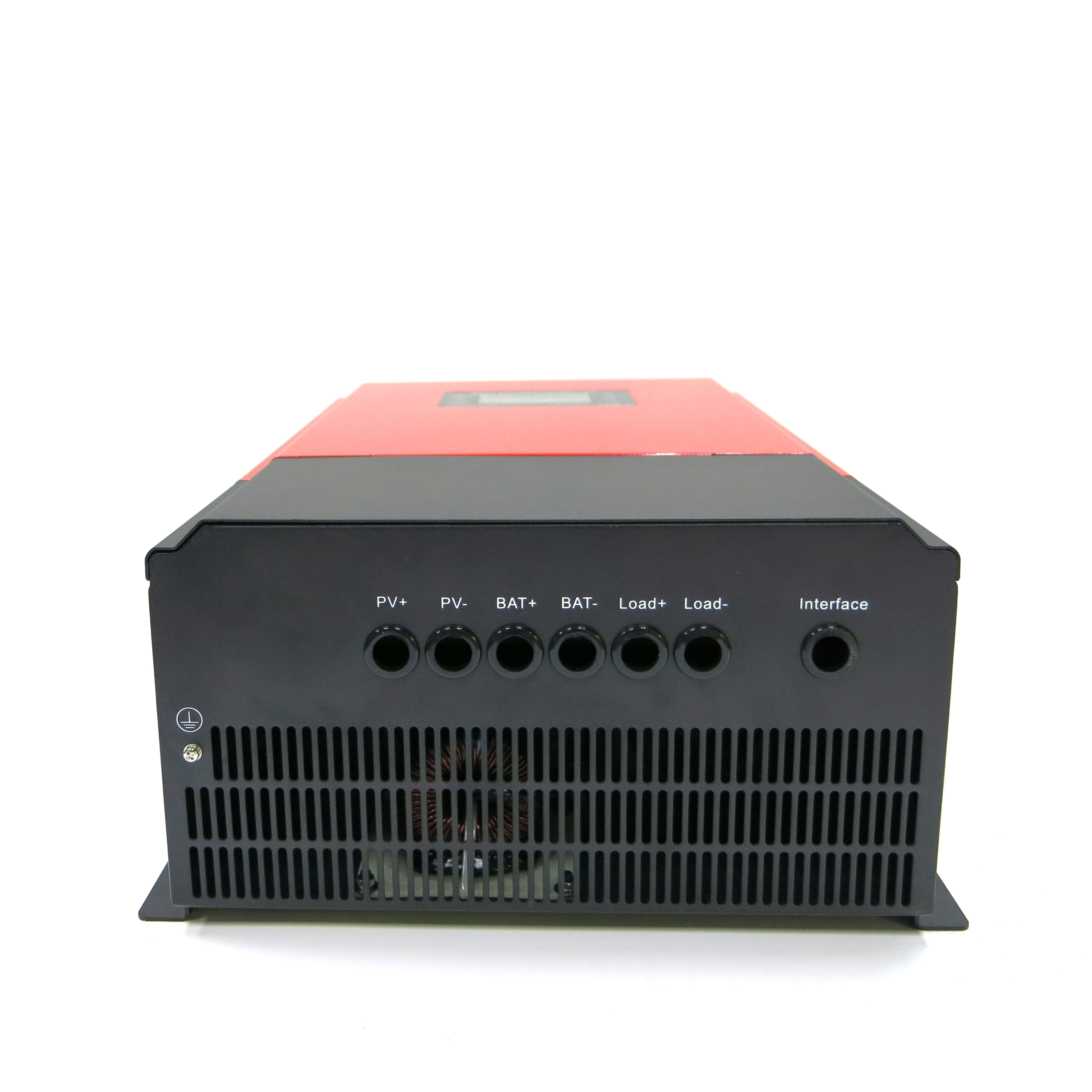

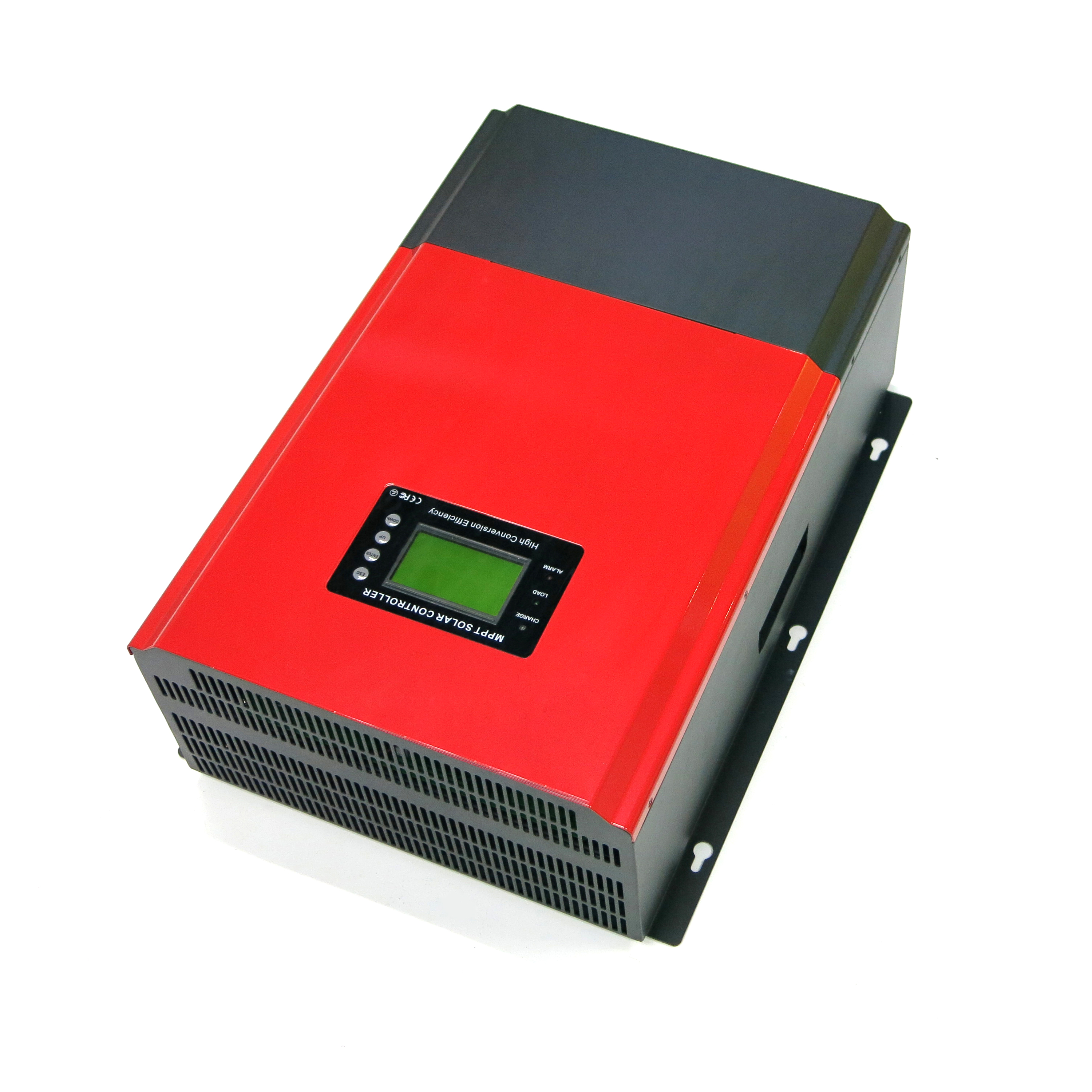

GALAXY Series High Power MPPT Solar Charge Controller

  • GALAXY series DC96V/192V/216V/240V/384V high power MPPT solar controller


    GALAXY series is a high-power maximum power point intelligent tracking (MPPT) solar charging controller with PV wide voltage range input, adjustable charging voltage, RS485/LAN communication, modular design, small size, light weight and high conversion. The advantages of efficiency, etc., are the highest-end high-power MPPT solar charging controller currently applied to off-grid systems;


    1. Efficient MPPT controller algorithm, MPPT efficiency is not less than 99.5%, and the conversion efficiency of the whole machine is up to 98%.
    2. Charging mode: third-order charging (constant current, constant voltage, floating charge) can effectively extend the life of the battery.
    3. LOAD mode has normally open / normally off mode, light control mode, dual time control mode, light control - fixed time control mode.
    4. Customers can choose to charge 3 types of commonly used batteries (sealed lead-acid batteries, colloidal lead-acid batteries, open lead-acid batteries), and can customize the parameters to charge other types of batteries.
    5. With current limiting charging function, when the user's battery board power is too large, the controller automatically maintains the charging power, and the charging current will not exceed the rated value.
    6. Support multiple machines in parallel to achieve system power upgrade.
    7. With high-definition LCD display function, you can view the running data and working status of the device, and support the setting of related parameters.
    8. RS485 communication, can provide communication protocol, convenient for customers to integrate management and secondary development.
    9. Support PC software monitoring, support WIFI module expansion to achieve app cloud monitoring.
    10. The products have passed CE, ROHS and FCC certification; they can cooperate with customers to pass various certifications.
    11. The normal warranty period is three years, and it can provide 3~10 years extended warranty service.






Product name:GALAXY
Product model:GALAXY Series - DC96V/192V/216V/240V/384V
