S Type 100-300W
-
Horizontal Wind Turbine Whole Series
S Type Wind Turbine Specification
Introduction
Zhangjiagang Great Energy Co., Ltd is a high-tech enterprise engaged in research and application of small wind turbine for over 10 years. We have the R&D team, advanced manufacturing and testing facilities and have formed and integrated system of design, manufacturing, marketing, installation, debugging and after-sales.
Our products cover 50W~20000W wind turbine systems. The wind turbines are CE、ISO certified, with a number of patents honored. We have developed solutions such as Wind/Solar/Diesel hybrid off grid system and on grid system. For areas short of electricity or no access to grid power, each model can work independently in various harsh environment. Our products have been exported to North America, Europe, Middle East, Africa, Asia. Which are widely used for yachts, boats, wind solar hybrid streetlights, off grid and on grid hybrid system for scattered households, farms, sentry posts, observatories, communication base, highways.
Features
- Low start up steed, high wind energy utilization;
- Easy installation, tube or flange connection optional;
- Blades using new art of precision injection molding, matched with optimized aerodynamic shape and structure, which enhance the wind energy utilization and annual output;
- Body of casting aluminum alloy, with 2 bearings swivel, making it survive stronger wind and run more safety;
- Patented permanent magnet ac generator with special stator, effectively reduce torque, well match the wind wheel, generator and ensure the performance of whole system;
- Using MPPT control can adjust the voltage more effectively.
Parameter
Model NE-100S NE-200S NE-300S Rated Power 100W 200W 300W Maximum Power 130W 220W 310W Rated Voltage 12/24V 12/24V 12/24V Start-up Wind Turbine 2M/S Rated Wind Speed 10M/S 11.5M/S 13M/S Safety Wind Speed 55M/S 55M/S 50M/S Top Net Weight 6KG 6.2KG 6.5KG Wheel Diameter 1.2M 1.3M 1.35M Number of Blades 3/5 Blades Material Nylon fiber Generator Three phase permanent magnet ac synchronous generator Magnet NdFeb Generator Case Casting Aluminum Alloy Control System Electromagnet Speed Regulation Automatically adjust wind ward direction Work Temperature -40~80℃ Design Life 20 years

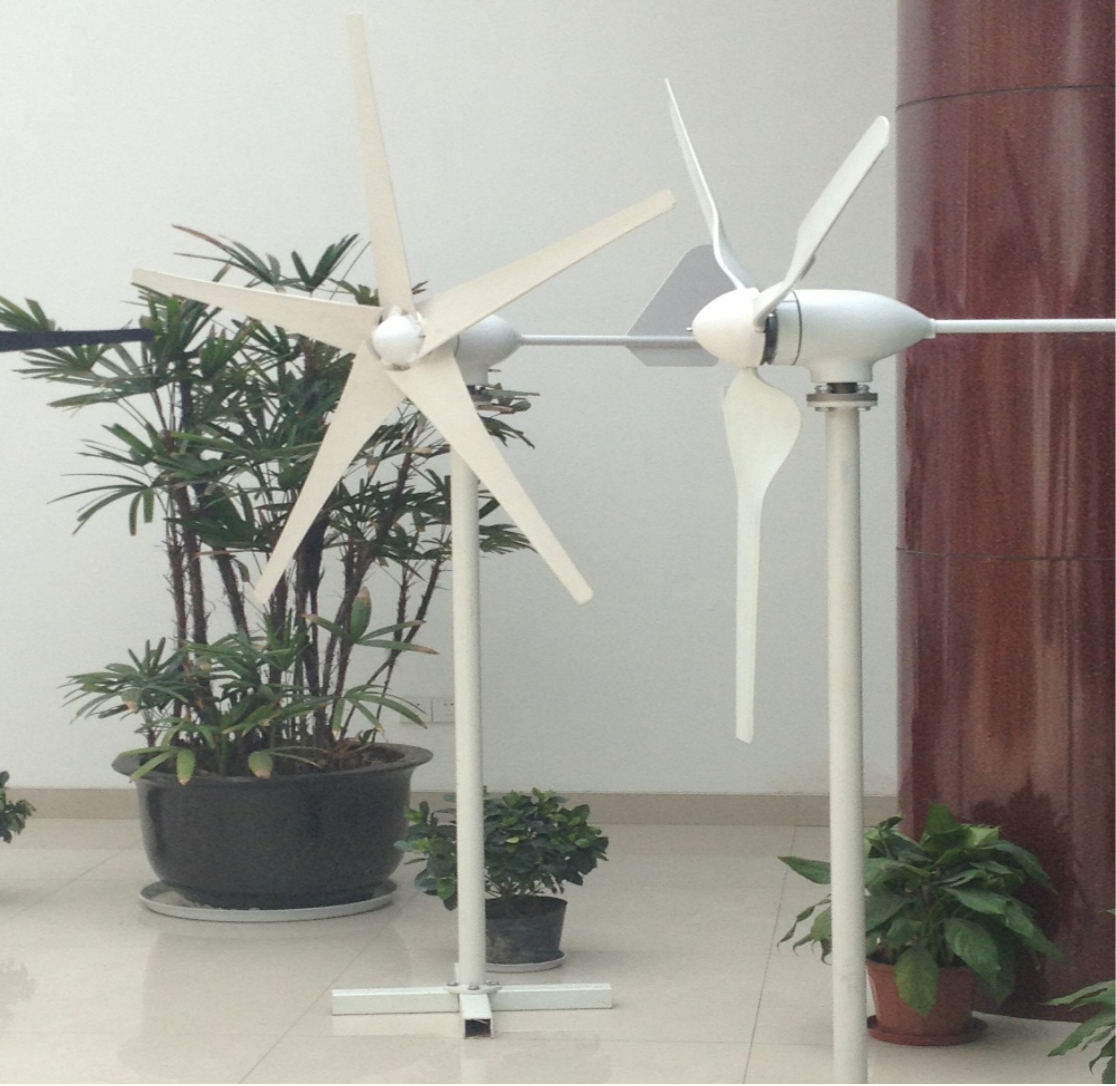

Photos
Factory
Certificate
