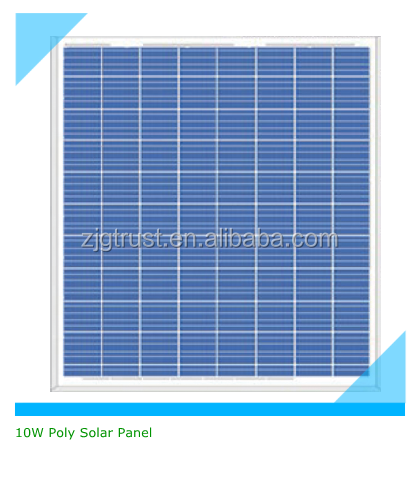

10W Poly Solar Panel



Feature:

  • High and stable conversion efficiency based on over 10 years professional experience;
  • High reliability with guaranteed 0~+3% output power tolerance;
  • Proven materials,tempered front glass,and a sturdy anodized aluminum frame allow modules to operate reliably in multiple configuration;
  • Combination of high efficiency and attractive appearance;
  • ISO9001:2008(Quality Management System) certified factory;
  • IEC61215,Safety tested IEC61730,CE;
  • 25 year output power warranty;
  • Product Quality Warranty&Product Liability Insurance guarantee end users' benefit.

Temperature Coefficients:



NOCT 45±2℃
Voltage temperature coefficient(Voc) -0.36%/℃
Current temperatre coefficient(Isc) +0.033%/℃
Power temperature coefficient(Pmpp) -0.44%/℃
Minimum power tolerance ±10%









Mechanical Data:

Solar Cell 36(4*9) Poly-crystalline 78*26mm
Front Glass 3.2mm temperd
Frame Anodized aluminium



Electrical Data:

Module type  SL010P-12
Nominal peak power(Wp) 10W
Nominal voltage(Vmp) 17.0V
Nominal current(Imp) 0.59A
Open-circuit voltage(Voc) 21.4V
Short-circuit current(Isc) 0.65A
Module efficiency 10.2%
Operating temperature -40~+85℃
Maximum system voltage 1000VDC
Net weight 1.2kg
Dimension 345*285*17mm

Structure:


Certification:
