                   DC Mini Solar Submersible Pump

The solution to your remote water pumping needs. This pump is rugged.durable and builtto last. This pump delivers a steady 162GPH(600LPH) at its maximum depth of 230 feet (70m) when supplied with 24VDC. Its unique water-tight power connector stops water wicking and prevents potential condensation problems. Great for livestock watering.irrigation,pondaeration,remote homes and cabins.

Parameters:



Pump Design Positive Displacement 3 Chamber Diaphragm Pump
Motor Permanent Magnet, Thermally Protected
Voltage 24VDC Nominal
Amps 4.0A Maximum
Internal Bypass 105-110PSI Max.(7.2-7.5 Bars)
Maximum Lift 230 feet Maximum (70 Meters)
Maximum Submersion 100 Feet Maximum (30 meters)
Outlet Port 1/2'' (12.7mm) Barbed Fitting
Inlet: 50Mesh Stainless Seel Screen
Materials High Strength Engineered Plastics,Stainless Steel Fasteners
Typical Applications Potable Water Well Pump




Features:

1. For 4" wells or larger
2. Quick disconnect with "Watertight-Gland" Design Pat Pend
3. Corrosion-proof housing with stainless-steel fastener
4. Run dry without damage
5. State of the art solid diaphragm
6. Stainless Steel Fastener
7. Pump Design: Positive Displacement 3 Chamber Diaphragm Pump
8. Motor: Permanent Magnet Thermally Protected
9. Internal Bypass: 105-110 PSI Max. (7.2-7.5 BARS)
10. Outlet Port: 1/2" (12.7mm) Barbed Fitting
11. Inlet: 50 Mesh Stainless Steel Screen
12. Material: High Strength Engineered Plastic

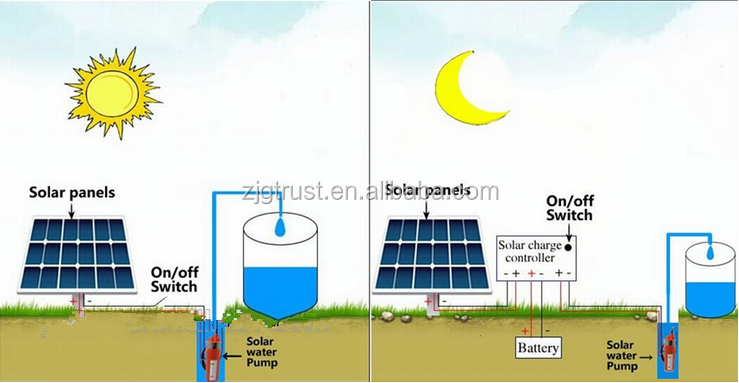

 Application:
