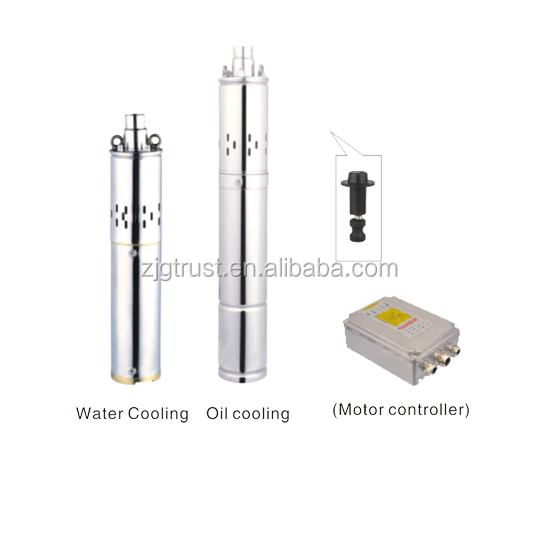

4SPS Series Solar Submersible Pump



Adopt stainless steel screw and rubber stator,permanent Magnet Brushless motor.With combination of motor and controller,the max efficiency is over 85%,raises 25% than the traditional AC one.

1)Stainless steel casing,shaft core,coupling and pump body;copper alloy connecting,base;rubber stator of high-strength and wear-resistant.

2)Oil immersion style stainless steel submersible motor.

Product Feature:

1)Compact structure,high-lift,noiseles,pllution-free;complete electrical protectiing controller device,against under-voltage,over-voltage,over-flow,overload,waterless etc;automatic recovery;controlling water height as demand.

2)Easy installation,maintenance-free,safe and reliable.Max head:1~110m,Max flow:4.2 m³/h.

Working Condition:

1)Non-corrosive water,the volume ratio of stand content no more than1‰ particle size less than 0.2mm.

2)Max medium temperature up to +40℃;PH value remains 6.5~8.5.

3)Work close to the rated head and must be immersed in water.



Solar Pump System:

 Operating Principle:
